Semi-auto 5-10L PET Bottle Blow Molding Machine

Share to:
    Payment Type: L/C,T/T
    Incoterm: FOB,CFR,CIF
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Type: Injection Blow Molding Machine

Raw Material: PET

Making Method of Parison: Stretch Blow

Automation: Non-Automatic

Computerized: Computerized

Certification: CE, ISO9001:2008

Additional Info

Packaging: Wooden case

Transportation: Ocean

Port: Shanghai Port

Product Description

Semi-auto 5-10L Pet Bottle Blowing Machine

Bottle Blowing Machine 9


1. Capacity: 200pcs/hr (based on 5L Bottle)

2. Max volume of product: 10 liter

Technique Parameter of Bottle Blow Molding Machine:

Main parameter:

Model

BX-12

Container

Product material

PET

Volume

2L-10L

Theoretical output

200PCS/H

Preform length

15mm-460mm

Preform inner diameter

Φ15mm-200mm

Moulding

Max. mould plate Dimension (L x W)

470x500mm

Max. mould thickness

370mm

Clamping force

100KN

Mould opening stroke

380mm

Machine size and weight

Main machine (L x W x H)

193*72*183cm

Main machine weight

800Kg

Heater (L x W x H)

187*63*145cm

Heater weight

250Kg

Power

17.5kw

1. HP air compressor

Bottle Blowing Machine3


Air compressor

Unit

1.2M3/min 30KG

Volume

M3

1.2

Pressure

Kg

30

Speed

r/min

850

Power

KW

15

Overall Dimension

mm

2000*1100*1600

Weight

kg

620

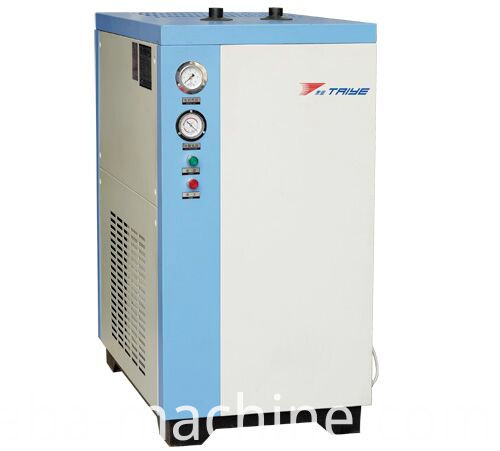

2. Air Cooling Drier

Bottle Blowing Machine4




Refrigeration Air Dryer

Unit

2.0M3/Min 3.0MPa

Flow capacity

Nm3/min

2.0

W.P

Mpa

3.0

Inlet Temp.

≤80

Dew point

23

Ambient Temp.

≤38

Power supply

V/HZ

220/50

Compressor power

Kw

0.5

Cold Medium

R22

Weight

Kg

180

3. Air Filter

Bottle Blowing Machine5

Refining-Filter

Unit

2.0N M3/3MPa

Flow Capacity

NM3/Min

2

Max. work pressure

MPa

3.0

Inlet Temp.

≤50

Functions of auxiliary equipment:

(1) Air compressor is the air source for PET stretch blow molding machine, carrying out the process of compressing air from atmosphere to the required pressure.

(2) Air dryer is to remove the moisture from the compressed air and lower temperature of the compressed air in the heat exchanger.

(3) Air filter is to clear up the impurities out of the compressed air, like carbon-hydrogen, tiny dust and solid particles.

(4) Air tank is to receive and supply air for the machine as storage.

Trait:

BX-12 blow molding machine is suitable for producing PET plastic containers and bottles from 5000-10000ml. Automatic Bottle Blowing Machine is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc.

1. Perfect function with economic investment.

2. Small size and compact construction with no space waste.

3. Easy to operate and to maintain, operation by one person.

4. Saving power and uneasy to worn out, Adopting new double crank four bars to lock mould, the cross fixed. Providing high pressure blowing system

5.We can provide performs and various bottle& cap molds for 5 gallon and 3gallon bottles to meet customer`s requirements.

related product: Bottle Blowing Machine, Bottle Filling Machine


Packaging and Shipping

Water Filling


Certificate

AaBbCc


FAQ

Q: How about the spare parts?

A: We will send one year enough easy broken spare parts together with the machines, shipping together. During the warranty time, we will supply the spare parts with our cost including the delivery fees.

Q: How long time for installation?

A: According your machines order, we will send one or two engineers to your plant, it will take about 10 days to 25 days.

Q: How to install my machines when it arrives? How much the cost?

A: We will send our engineers to your factory to install the machines and train your staff how to operate the machines. Customer pay air tickets go and back accommodation and USD80/day/person.

Q: When can I get my machine after I paid?

A: Normally production time is around 30-60days, the exactly depend on what kind of machine you order. The shipping time is based on your destination port.

Q: What`s your guarantee or warranty of the quality if buy your machines?

A: We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q: Are you a trading company or a manufacturer?

A:We are an original equipment manufacturer so that we can provide you high quality machines in reasonable price. Welcome to visit us.
