0.5L-2L PET Bottle Automatic Blowing Machine 4000BPH

Share to:
    Payment Type: L/C,T/T
    Incoterm: FOB,CFR,CIF
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Type: Injection Blow Molding Machine

Raw Material: PET

Making Method of Parison: Stretch Blow

Automation: Non-Automatic

Computerized: Computerized

Certification: CE, ISO9001:2008

Additional Info

Packaging: Wooden case

Transportation: Ocean

Port: Shanghai Port

Product Description

0.5L-2L Bottle Blowing Machine 4000BPH

Bottle Blowing Machine 10


Capacity: 3500-4000pcs/hr (based on 500ml)

Technique Parameter of Bottle Blow Molding Machine:

Main part:

Pneumatic part

Valve

SMC, Japan

Cylinder

Electric part

PLC

Siemens/Mitsubishi

Touch screen

Siemens/Mitsubishi

Relay

OMRON, Japan

Contactor

SCHNEIDER, France

Note

All of the electrical components adopts CE, UL, CCC approved international advanced high-tech product.

Main parameter:

Model

BX-A4

Productivity

Depend on bottle design

3500-4000PCS/H

Product type

Body diameter

≤100mm

Height

≤325mm

Neck diameter

28mm-30mm

Mold

Cavity

4 cavities

Mold thick

188mm

Main machine power

Electrical source power

380v 3Phase /220v 3Phase 50/60HZ

Rated Power

25kw

Really use power

22kw

Air source

LP air compressor

2.0m3/min 1.0MPa

HP air compressor

3.2m3/min 3.0MPa x2

Air dryer

7.0m3/min 3.0MPa

Cooling water

Cooling water

60L/min

Machine Size

L*W*H

3500*1900*2200mm

Weight

3200kg

Auxiliary equipment

(preform unscramble)

L*W*H

3500*1900*2200mm

Weight

350kg

Resin available

/

PET

HP air compressor:

Hp

Air compressor

Unit

3.2M3/30KG

Volume

M3

3.2

Pressure

Kg

30

Speed

r/min

850

Power

KW

2×18.5

Overall Dimension

mm

2350×1100×1650

Weight

kg

1150


LP air compressor:

Lp


Air compressor

Unit

2.0M3/10KG

Volume

M3

2.0

Pressure

Kg

10

Power

KW

15

Overall Dimension

mm

2100*1100*1900

Weight

kg

850

Mold Chiller:

Chiller


Model

05WCI

4.4/38 Cooling capacity(Kcal/h)

9175

Compressor

All-closed vorticity

Compressor power (KW)

4.4

Refrigerant

R22

Chilled water pump power(KW)

0.75

10 Max. flow rate of chilled water(L/min)

120

Flow water inlet and outlet pipe

1``

Condensing water rate L/min

≥60

Chilled water inlet and outlet pipe

1``

Exterior dimension

Length(mm)

1200

Width(mm)

580

Height(mm)

1180

Water tank capacity

L

55

Weight

Kg

176


Air Cooling Drier:

Bottle Blowing Machine4


Refrigeration Air Dryer

Unit

7.0M3/min 3.0MPa

Flow capacity

Nm3/min

7.0

W.P

MPa

3.0

Inlet Temp.

≤80

Dew point

23

Ambient Temp.

≤38

Power supply

V/HZ

220/50

Compressor power

Kw

2.0

Cold Medium

/

R22

Overall Dimension

mm

1550×850×1650

Weight

Kg

400

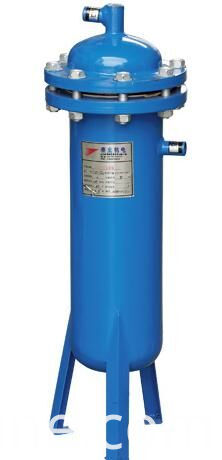

Air Filter:

Bottle Blowing Machine5

Refining-Filter

Unit

7.0N M3/30Kg

Flow Capacity

NM3/Min

7.0

Max. work pressure

MPa

3.0

Inlet Temp.

50


Air Storage Tank:

Tank

Air storage tank

Unit

1.0M3/3.0MPa

Volume

M3

1.0

Pressure designed

MPa

3.0

Temp. designed

100

Work pressure

MPa

3.0

Test pressure

MPa

4.13

Weight

Kg

505

Overall Dimension

mm

1200*1100*2650

This Pet Bottle Blowing Machine is suitable for producing PET plastic containers and bottles in all shapes. Automatic Bottle Blowing Machine is widely used to produce the carbonated bottle, mineral water bottle, pesticide bottle, oil bottle, wide-mouth bottle etc.

* Stable performance with advanced PLC.

* Conveying preforms automatically with conveyor.

* Strong penetrability and swift distribution of the heater by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.

* Strong clamping force with high pressure and double crank links to lock the mold.

* Low cost, high efficiency, easy operation, easy maintenance, with automatic technological process.

* Ideal effect of the chilling with the chilling system.

* Easy installation and starting

* Low rejection rate: less than 0.2 percent.

related product: Water Bottle Filling Machine


Packaging and Shipping

Water Filling


FAQ

Q: How about the spare parts?

A: We will send one year enough easy broken spare parts together with the machines, shipping together. During the warranty time, we will supply the spare parts with our cost including the delivery fees.

Q: How long time for installation?

A: According your machines order, we will send one or two engineers to your plant, it will take about 10 days to 25 days.

Q: How to install my machines when it arrives? How much the cost?

A: We will send our engineers to your factory to install the machines and train your staff how to operate the machines. Customer pay air tickets go and back accommodation and USD80/day/person.

Q: When can I get my machine after I paid?

A: Normally production time is around 30-60days, the exactly depend on what kind of machine you order. The shipping time is based on your destination port.

Q: What`s your guarantee or warranty of the quality if buy your machines?

A: We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q: Are you a trading company or a manufacturer?

A:We are an original equipment manufacturer so that we can provide you high quality machines in reasonable price. Welcome to visit us.
