PE Film Heat Shrink Wrapping Packing Machine(Color)

Share to:

Product Description

PE Film Heat Shrink Wrapping Packing Machine(Color)


Technical parameter:

● Facility model: WD-450type

● Facility overall size: L11850*1215*2150H mm

● Packaging article max size: L *W *H mm

●Shrinkage film material: PE.PVC.POF

● Shrink membrane thickness: 80~90um

● Per minute max capacity: 45 bag (can limitless speed adjust)

● Power supply max load relied: heating case 48kw/220v

(while temperature power is 48KW, working temperature keeping section power is 24kw);

mechanism part power is 10KW);

● Machine usage compressor air pressure:0.4~0.7Mpa;max gas consumption quantity is:

0. 25NM3/min

● Conveyor belt max width: 600mm,height is: 1120~1185(mm)(can adjust)

● Pressure requirement: 380/220V

● Facility weight: 5150kg




Technology condition and requirement:

1. Package type:

3row*3arrange/bag,6row*4arrange/bag,6row*3arrange/bag

or accord with client requirement

2. Applied to container type:

round glass bottle or PET bottle.can,container outsider diameter is 60-90 mm height is 120-300mm

(remark: while exchange related spare parts, applied arrange is more wider).

Accord with u company specific requirement: related bottle type package type related software have already installed, while exchange bottle type, just need to switch over at manipulation panel, easy to handle;

3Speed:45bag/minute (can continuous stepless speed regulation

4. meet with pre-treatment Filling Machine filling speed. Package specification as follows:

3row*3arrange/bag,6row*4arrange/bag,6row*3arrange/bag, 4row*3arrange/bag

or accord with client requirement

5. Package material requirement:

Material: PE; density:0.91~0.92 g/cm3

thickness:80~90um

max membrane roller diameter: 500mm

membrane roller plate core diameter: Φ76~Φ80mm

stretch tension: longitudinal.lateral accord with GB13022 criterion;

heating shrink ratio: longitudinal.lateral accord with GB/T13519-92criterion,70±5 %.20±5 %

shrinkage ratio: longitudinal.lateral accord with GB/T13519-92 criterion;

fracture tension: longitudinal.lateral accord with GB13022 criterion;

thickness deviation: accord with GB6672 criterion;

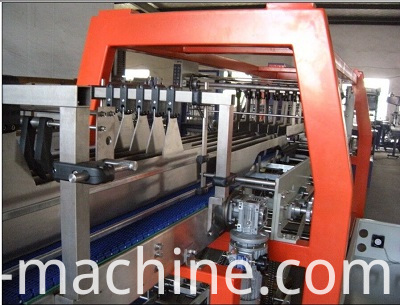

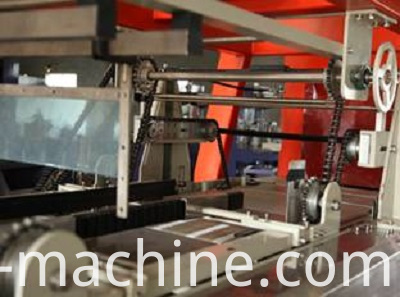

Shrink Wrapping Machine11Shrink Wrapping Machine22


Shrink Wrapping Machine33


Packaging and Shipping

Water Filling


Certificate

AaBbCc


FAQ

Q: How about the spare parts?

A: We will send one year enough easy broken spare parts together with the machines, shipping together. During the warranty time, we will supply the spare parts with our cost including the delivery fees.

Q: How long time for installation?

A: According your machines order, we will send one or two engineers to your plant, it will take about 10 days to 25 days.

Q: How to install my machines when it arrives? How much the cost?

A: We will send our engineers to your factory to install the machines and train your staff how to operate the machines. Customer pay air tickets go and back accommodation and USD80/day/person.

Q: When can I get my machine after I paid?

A: Normally production time is around 30-60days, the exactly depend on what kind of machine you order. The shipping time is based on your destination port.

Q: What`s your guarantee or warranty of the quality if buy your machines?

A: We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q: Are you a trading company or a manufacturer?

A:We are an original equipment manufacturer so that we can provide you high quality machines in reasonable price. Welcome to visit us.




Looking for ideal Film Heat Shrink Wrapping Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Shrink Wrap Packing Machine are quality guaranteed. We are China Origin Factory of Pe Film Shrink Wrapping Machine. If you have any question, please feel free to contact us.
